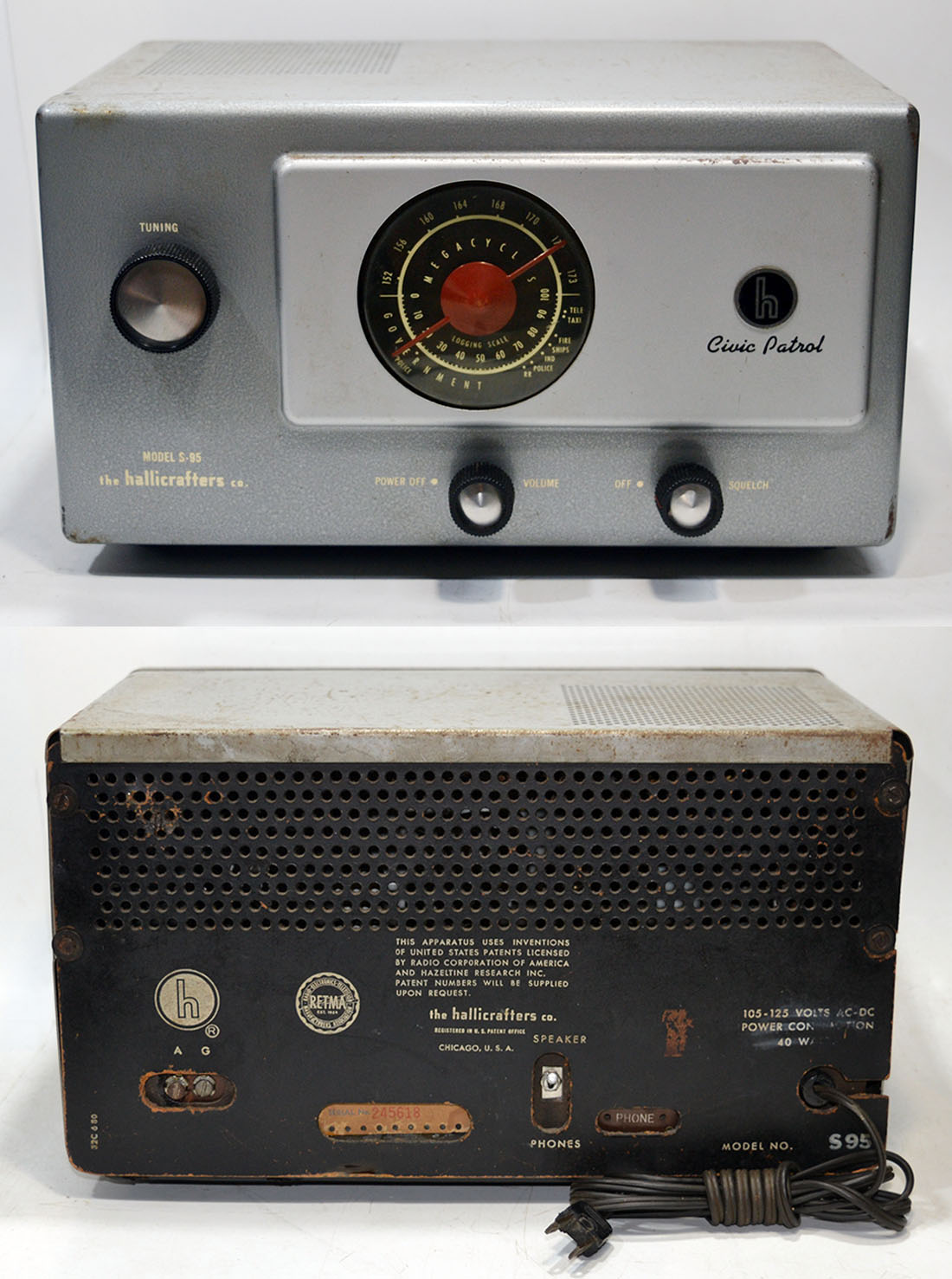

hallicrafters MODEL S95
真空管式の受信機です。
受信周波数は、 152-173MHz、FMです。
下記は、ネット調べ情報です。
Civic Patrol S-95
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Country United States of America (USA)
Manufacturer / Brand Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Year 1955?1962
Category Amateur-Receiver (amateur bands, may include broadcast bands)
Hallicrafters, The; Civic Patrol S-95 (1)
Technical Specifications
Number of Tubes 8 Valves / Tubes
Main principle Superhet with RF-stage; ZF/IF 10700 kHz; 2 AF stage(s)
Wave bands FM Broadcast Band Only
Power type and voltage AC/DC-set / 60 cycles, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / O 5 inch = 12.7 cm
Power out 1.5 W (unknown quality)
Material
Metal case from Radiomuseum.org
Model: Civic Patrol S-95 - Hallicrafters, The; Chicago,
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 12.9 x 7 x 7.25 inch / 328 x 178 x 184 mm
Notes Coverage: 152-173MHz, updated version of the S-81.
1957: a 6AB6 is used as grounded grid r-f amplifier.
ca. 1960: a 12AT7 is used as cascode r-f amplifier.
AC-DC Operated FM Superheterodyne Receiver.
